KONSAN FABRIC SPREADER (Cradle-Feeding)
TECHNICAL INFORMATION
Edge Alignment by photocells (precision of -2,+2 mm).. Linear Optic Sensor, which can sense the tension on the fabric. Fully automatic, computerized system control (PLC Computer System).. Automatic cutting at layer ends. Noiseless working environment without any vibration. Operator Platform. Zigzag spreading ability by fitting a simple apparatus. Precision of -5, +5mm at layer end. Additional tension adjustment according to fabric type by a special mechanism developed by KONSAN. Cradle-Feeding Mechanism to enable you to use fabric rolls without rollers. Unique splice control system. Optional: Programmable to the layer length to be spread. Accurate measurement of the length by Encoder System.
TECHNICAL DATA
|
|
160 T/T-E |
190 T/T-E |
210 T/T-E |
|
Max. Fabric Width |
160 cm |
190 cm |
210 cm |
|
Max. Fabric Roll Diameter |
60 cm |
||
|
Max. Fabric Weight |
350 Kg |
||
|
Max. Spreading Height |
19 cm |
||
|
Max. Spreading Speed |
80 m/min |
||
|
Machine Width |
270 cm |
300 cm |
310 cm |
|

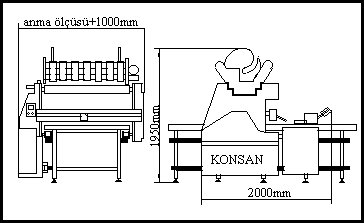

Machine Length |
200 cm |
||
|
Machine Height |
195 cm |
||
|
Machine Weight |
480 Kg |
520 Kg |
540 Kg |
ELECTRICAL DATA
|
|
220V AC. |
Magnetic Stopper |
|
SP/...TE |
Encoder System |
