KONSAN FABRIC SPREADER (Standard)
TECHNICAL INFORMATION
Edge Alignment by photocells (precision of -2, +2 mm). Programmable automatic spreading. Fully automatic, computerized system control (PLC Computer System). Automatic cutting at layer ends. Noiseless working environment without any vibration. Operator Platform. Zigzag spreading ability by fitting a simple apparatus. Precision of -5, +5mm at layer end. Additional tension adjustment according to fabric type by a special mechanism developed by KONSAN.. A system to remove the wrinkles on the fabric. Optional: Programmable to the layer length to be spread. Accurate measurement of the length by Encoder System (SE types).
TECHNICAL DATA
|
|
160 S/S-E |
190 S/S-E |
210 S/S-E |
|
Max. Fabric Width |
160 cm |
190 cm |
210 cm |
|
Max. Fabric Roll Diameter |
70 cm |
||
|
Max. Fabric Weight |
80 Kg |
||
|
Max. Spreading Height |
19 cm |
||
|
Max. Spreading Speed |
80 m/min |
||
|

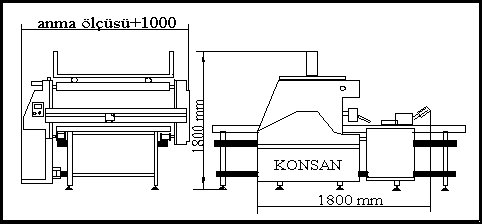

Machine Width |
260 cm |
290 cm |
310 cm |
|
Machine Length |
180 cm |
||
|
Machine Height |
180 cm |
||
|
Machine Weight |
380 Kg |
410 Kg |
420 Kg |
ELECTRICAL DATA
|
|
220V AC. |
Magnetic Stopper |
|
SP/...SE |
Encoder System |
